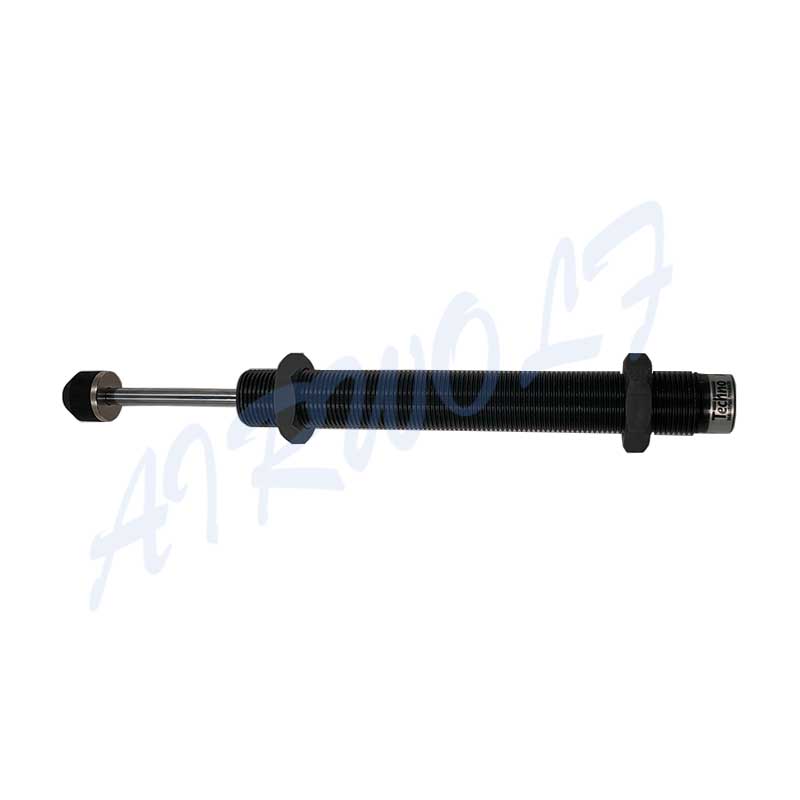

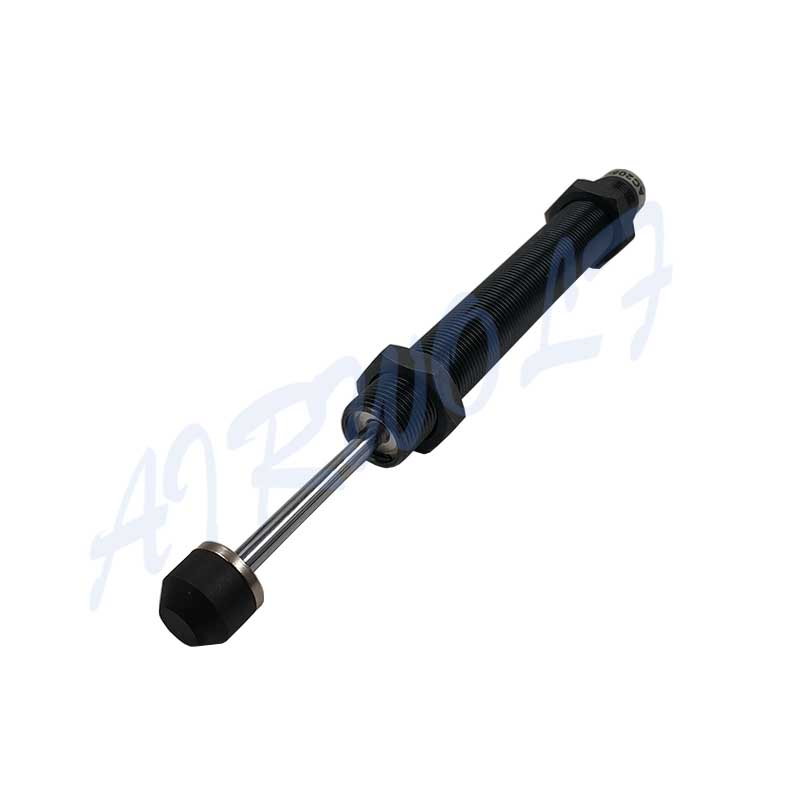

Self-compensation shock absorber AC2050-2 with black plastic cap oil buffer
Self-compensation shock absorber AC2050-2 with black plastic cap oil buffer
Minimum Order Quantity
1 piece
Price
Negotiation
Packaging Details
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time
within 1-10 working days after payment
Payment Terms
T/T , Western Union,Paypal
Model
AC2050-2
MOQ
1 piece
Payment
T/T, Western Union
Place of Origin
Ningbo City, Zhejiang province, China
Brand
Airwolf
Material: Iron
Certification: CE
Availability: OEM
Delivery Time: within 1-10 working days after payment
Start Port: Ningbo / Shanghai
Supply Ability: 5000 Pieces / Week

Detailed Description

The AC series self-compensation shock absorber can absorb the kineticobject energy as soon as possible. It converts kinetic energy into thermal energy and outputs it to the air to avoid the mechanical damage and enhance the safety of mechanical operation, prolong the service life of the machine also. The shock absorber is mainly used in cylinder, combined air pressure manipulator, lathe, robot, Conveyor Systems etc. Examples of Application: drill pree, platform drill hole, circular saw cutting, lathe turning tool cutting, pneumatic aiguille drill hole, slide carriage stable speed.

Description

Body material: Iron

Stroke:50 mm

Working temperature:-10 ~+80 ℃

Impact speed: Middle speed

Advantages

part.1
We use Special lubricants as buffer medum, which adapts to wide temperature range and ensures stable cushioning.

part.2
 The special oiling process leads to stable shock absorbing.

part.3
The wear resistance plastic cap can significantly reduce noise.

part.4
With high hardness stainless steel shaft, the shock absorber has better impact and corrosion resistance, and it can work under adverse conditions.


Principle:
     When piston rod is impacted, it will drive piston to press oil in inner tube. Oil will be pressed out through orifice holes of inner tube. At the same time, the oil returns to inner tube through returning hole of inner tube.
    After outside force vanishes, spring makes piston rod immediately return to its position. Oil will return to inner tube through check valve. Then shock absorber will return to be ready position waiting for next action.



Attention
1.  It is strictly prohibited to knock or collide the shaft, which may easily lead to bending of the shaft.
2. The surface of the shaft should not be covered with sewage or dirty oil, and the shaft must operate in a clean environment.Otherwise, it will increase the probability of product leakage and reduce the service life of the product.
3. It is strictly prohibited to spray paint on the pipe teeth and axis, otherwise it will affect the heat dissipation effect and oil leakage.

Feature

ModelStroke (mm)Max. Impact Speed (m/s)
AC1410-2102
AC1420-2202
AC1425-2252
AC2020-2202
AC2030-2302
AC2050-2502
AC2525-2252
AC2550-2502
AC3660-2602


Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.


After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
